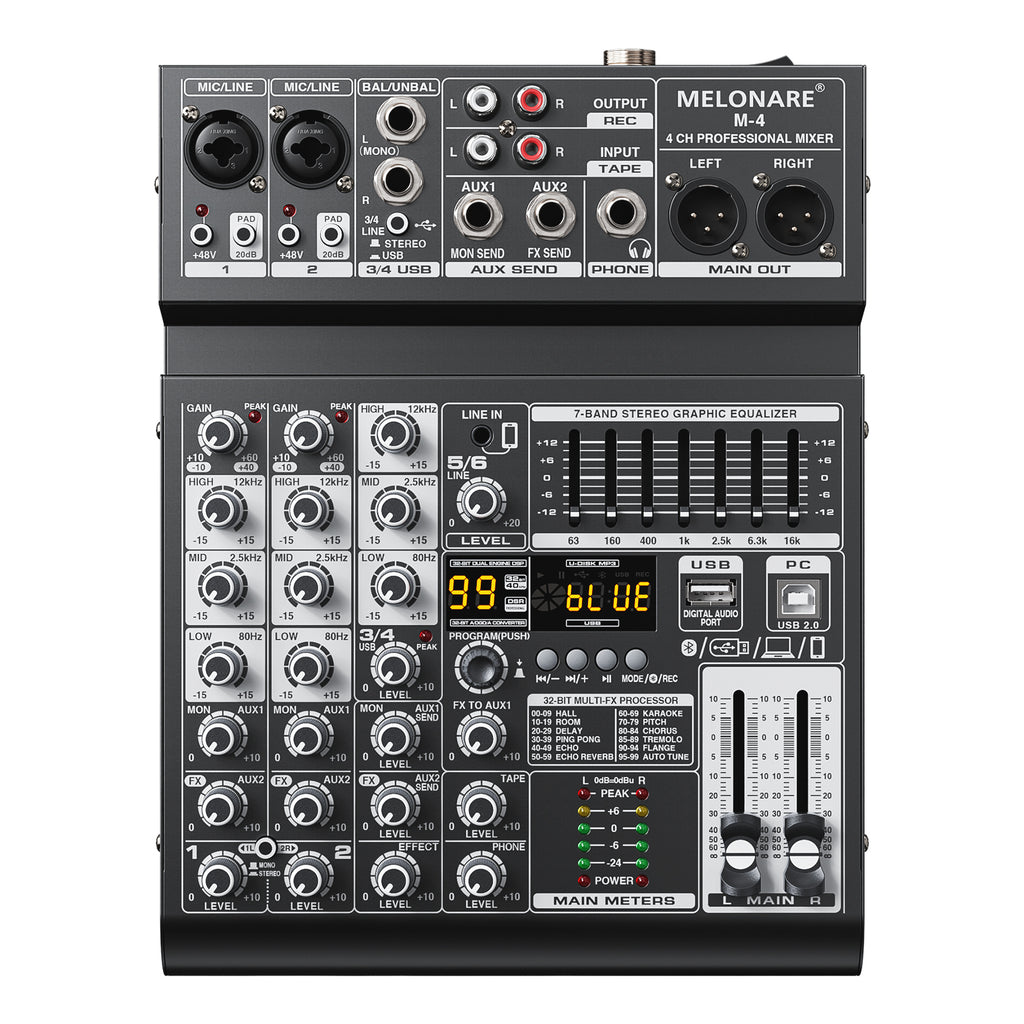

Melonare 4-Channel Audio Mixer with USB, Bluetooth, 99 DSP Effects, +48V Phantom Power for Small Bands, Musicians & Streamers

The M-4 is a four-channel mixer designed for small bands, amateur musicians, and live streamers. It offers flexible input options to ensure compatibility with a wide range of devices. With enhanced external expansion, it integrates seamlessly with additional effects for superior sound control. Featuring a 3-band EQ, a 7-band graphic EQ, a PAD switch, 99 DSP effects, and independent left/right output volume controls, the M-4 allows users to perfectly tailor their sound. It also offers high-quality recording options via the USB 2.0 port, delivering clear and dynamic sound that meets professional standards.

Features

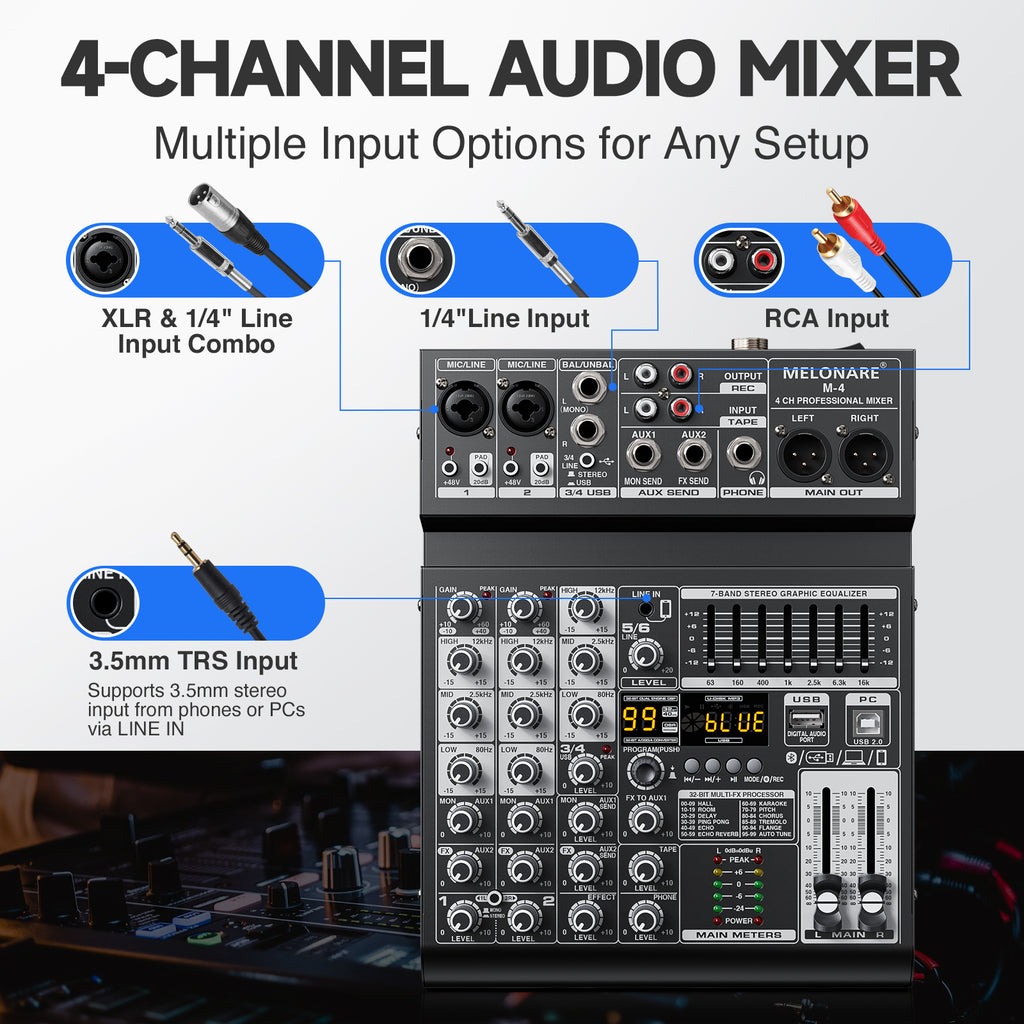

Flexible Input Options
This audio mixer includes two XLR/6.35 mm combo inputs, two 6.35 mm stereo inputs, two RCA inputs, and one smartphone LINE IN input, providing versatile connectivity for both professional and personal audio equipment.

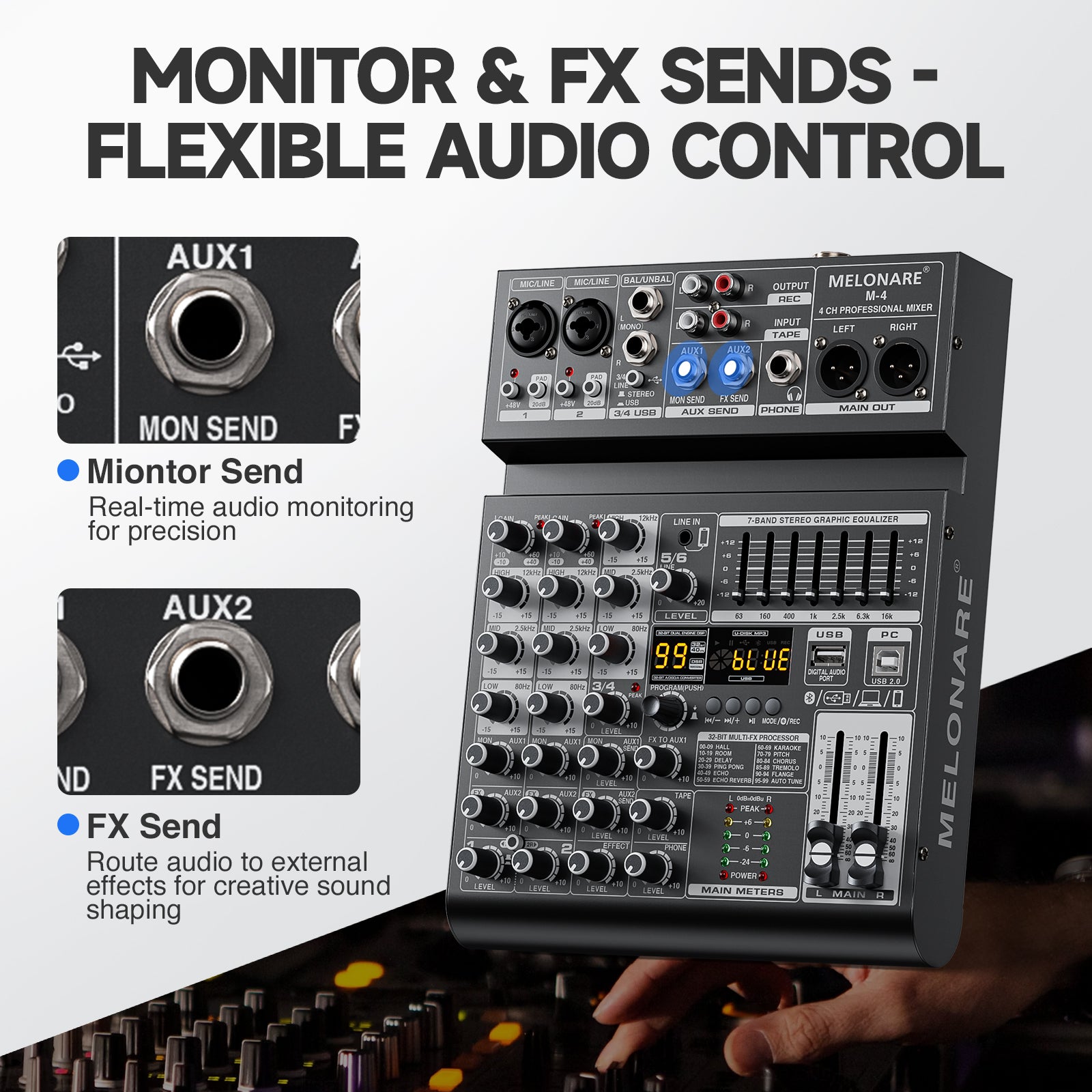

Enhanced External Expansion
This audio mixer supports external monitoring via Monitor Send and supports external effects processing with FX Send. These outputs provide greater flexibility and control.

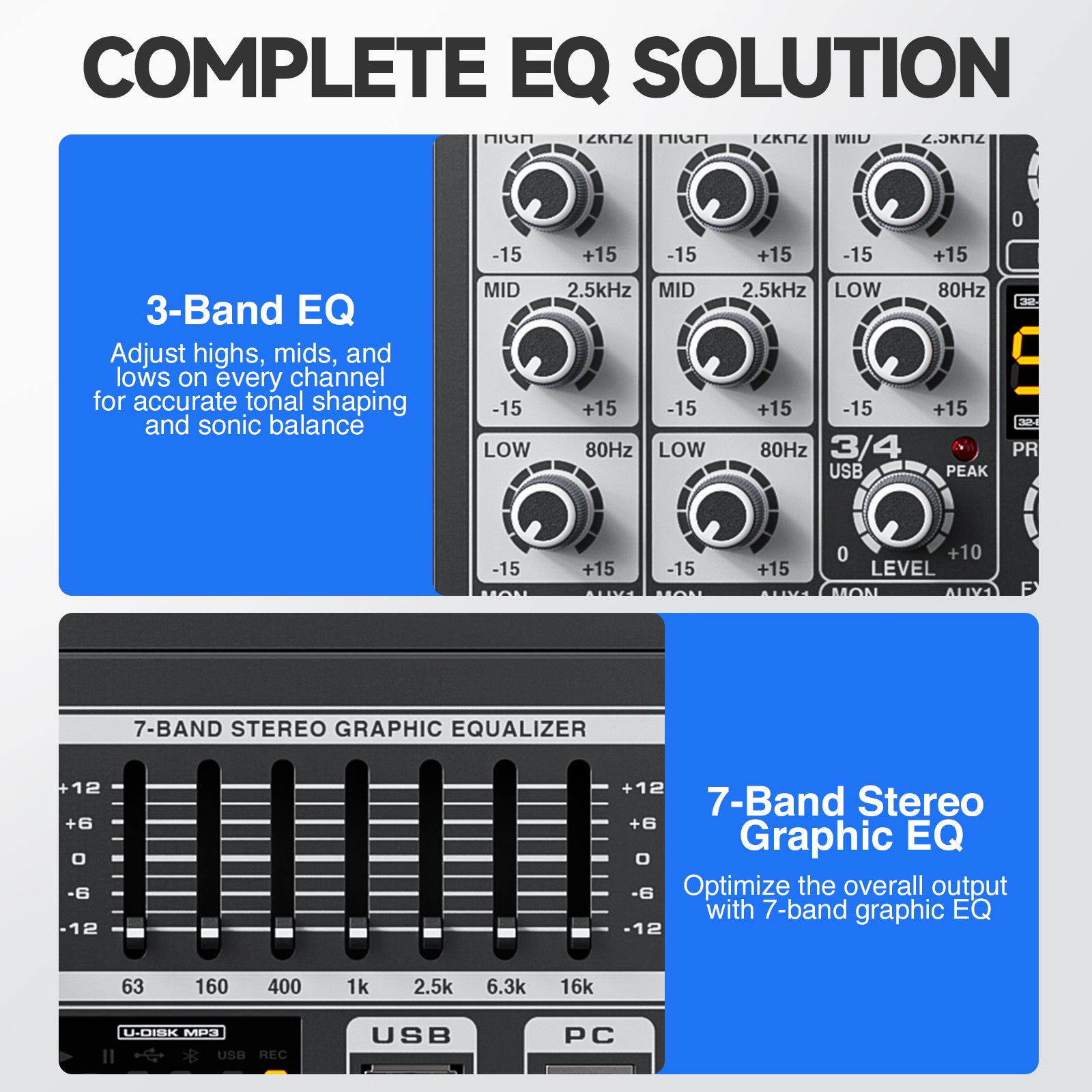

Precision EQ Control
Each input channel features a 3-band EQ—high, mid, and low—allowing precise tonal adjustments for vocals, instruments, and other audio sources. In addition, a dedicated 7-band graphic EQ on the main output bus provides greater control over the overall sound profile.

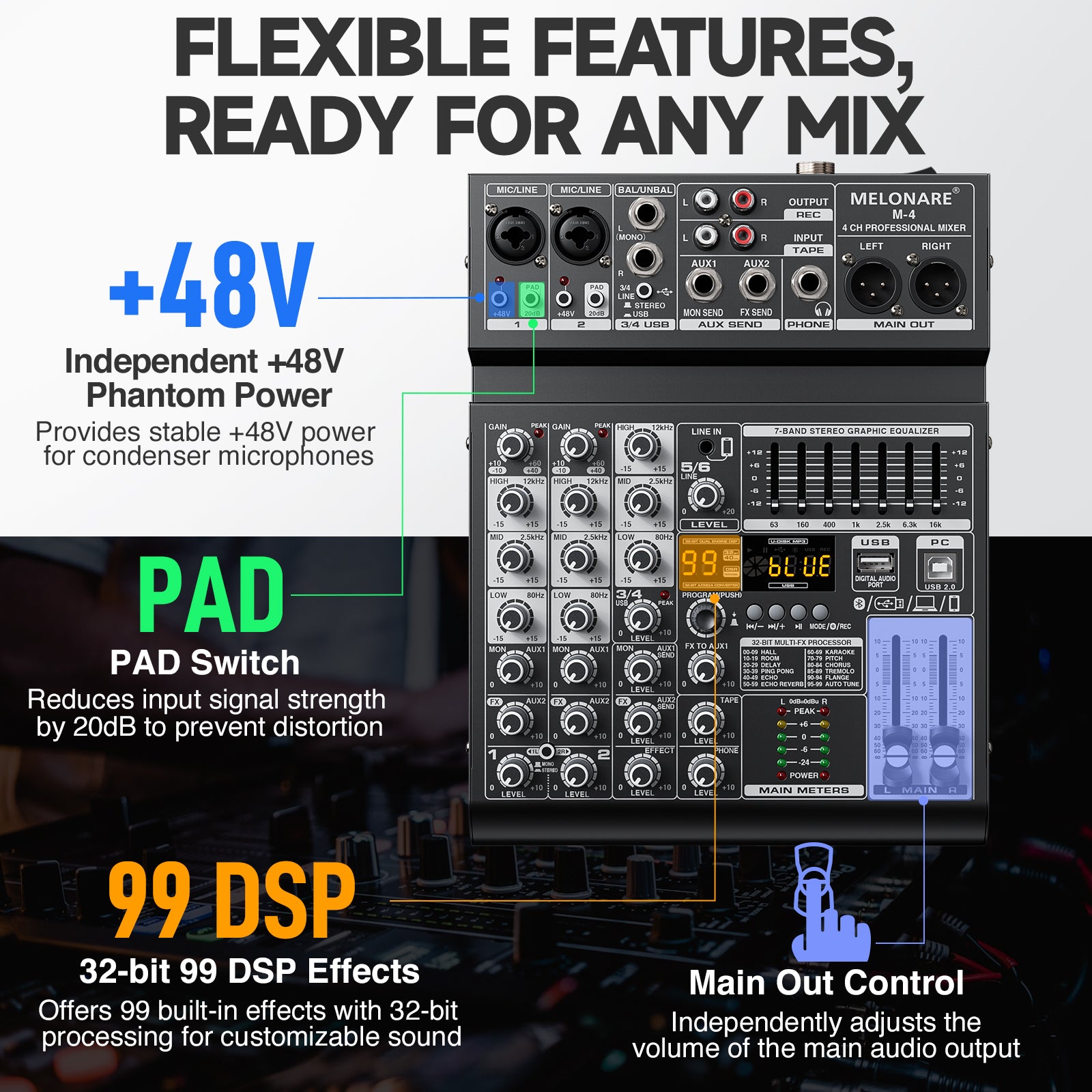

+48V Phantom Power
Switchable +48V phantom power supports condenser microphones and can be turned off to prevent damage to ribbon microphones or other sensitive microphone types.

PAD Switch
The PAD switch attenuates input signals by 20 dB, protecting the mix from overload and distortion when connecting high-output sources such as active instruments or line-level equipment, providing consistently clean and accurate sound.

Main Output Control
It features independent main output controls for the left and right channels, allowing precise adjustment of the stereo balance and overall mix levels, ideal for both live sound reinforcement and studio monitoring.

99 DSP Effects
Equipped with 99 32-bit DSP effects—reverb, delay, chorus, etc.—this mixer offers a rich palette of dynamic, high-resolution sound enhancements for both live performances and studio productions.

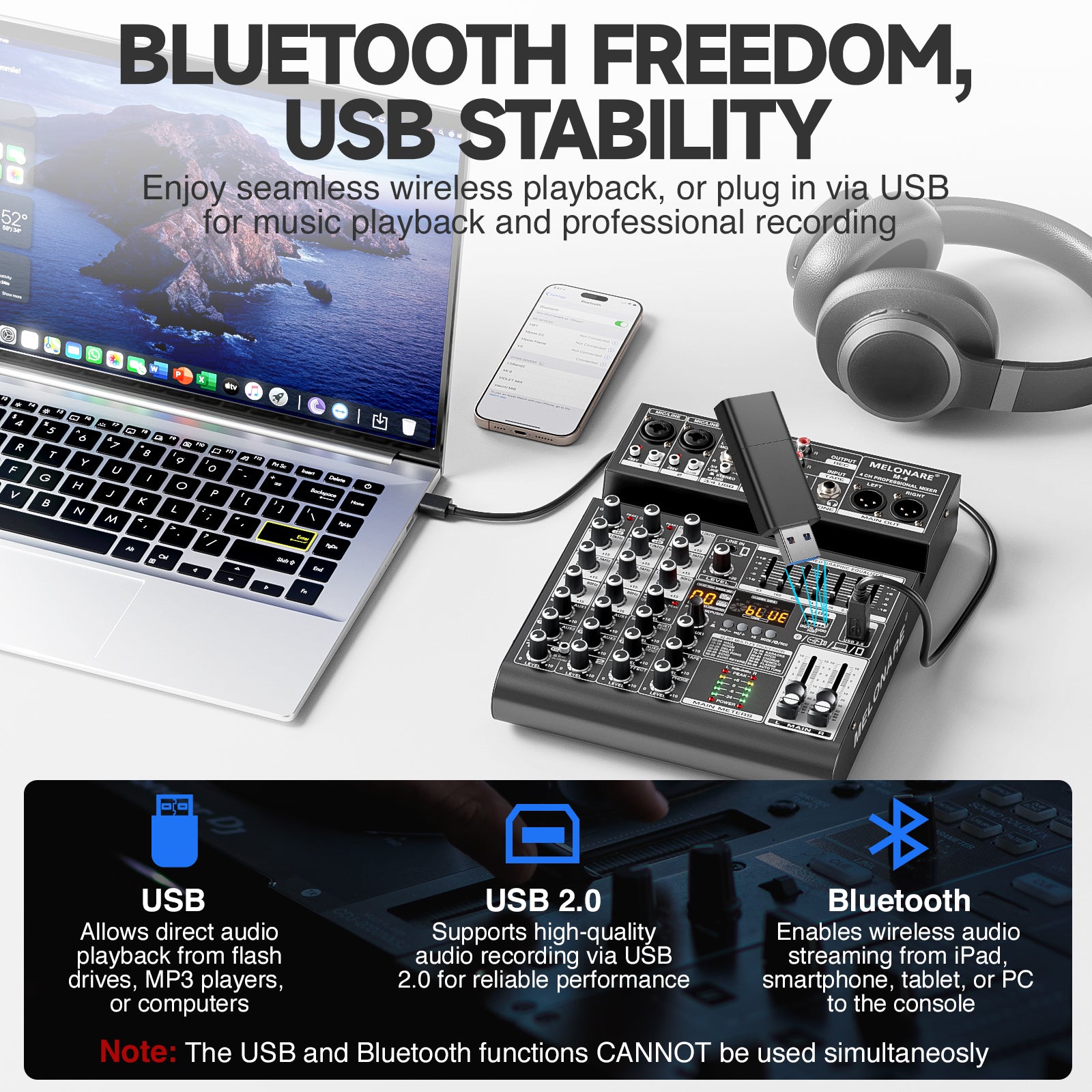

USB Connectivity and Bluetooth Streaming
This audio mixer features a USB audio interface for playback from flash drives, MP3 players, or computers; a USB 2.0 port for high-quality audio recording; and Bluetooth connectivity for seamless wireless streaming from your iPad, smartphone, tablet, or PC, perfect for easily enhancing your mix.

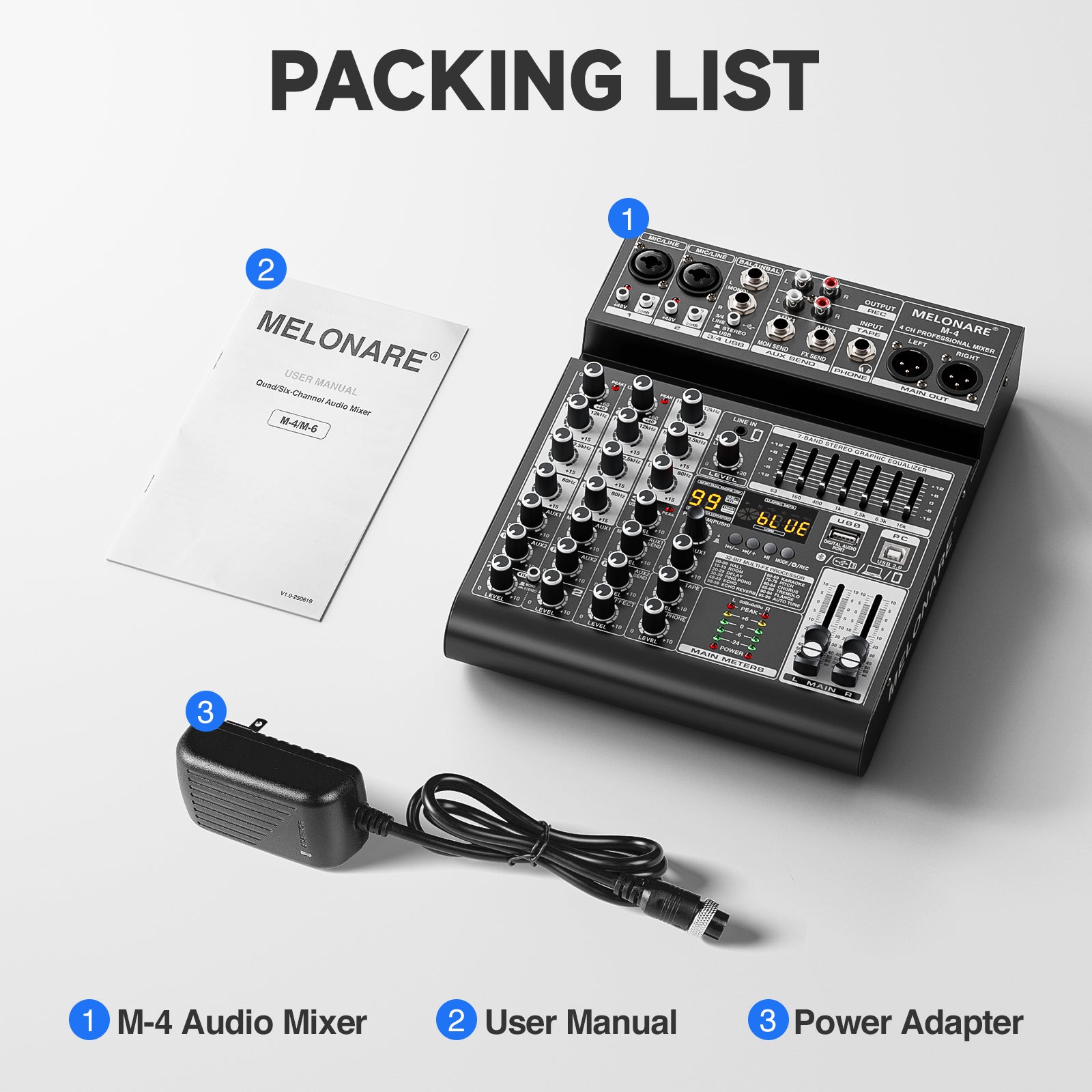

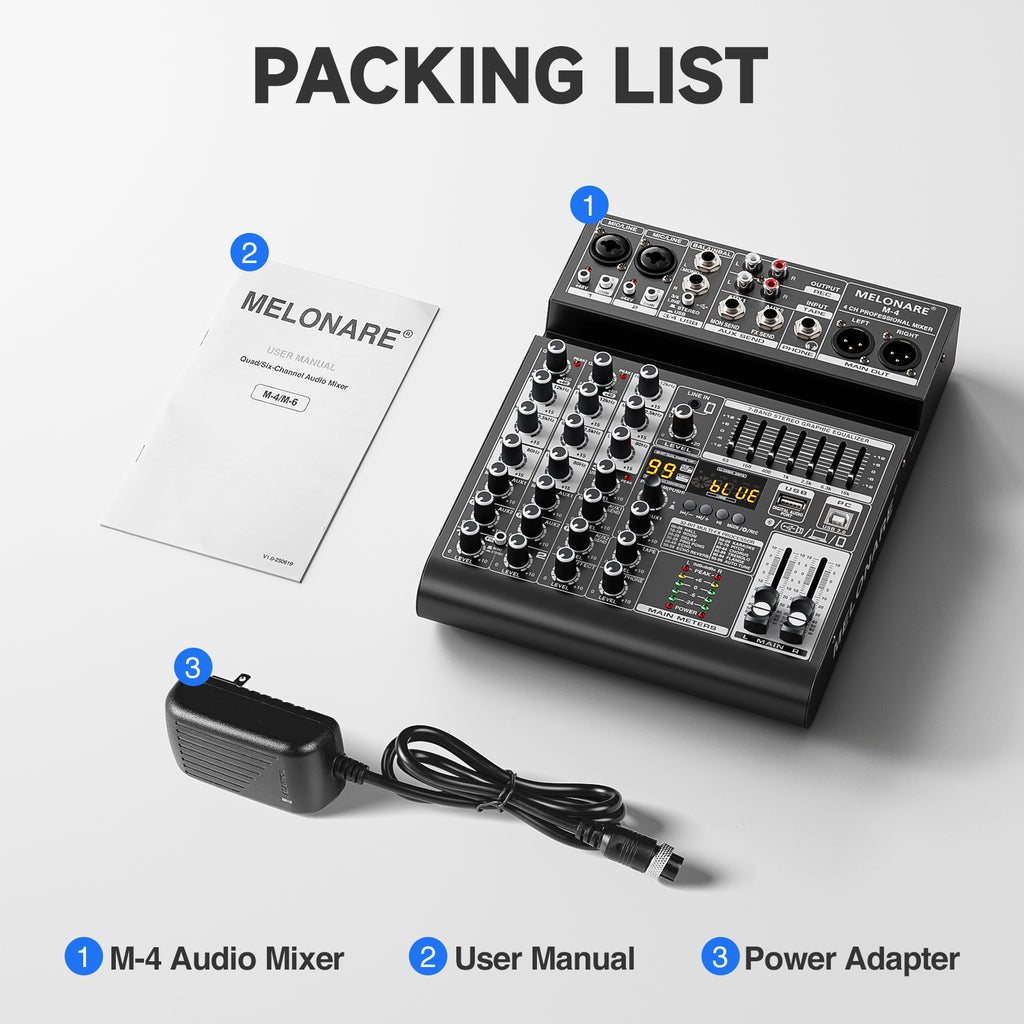

Package Contents

* 1 x M-4 audio mixer
* 1 x Power adapter
* 1 x User manual

Specifications

Total harmonic distortion: ≤ 0.05%
Frequency response: 20 Hz - 20 kHz
Main mix output (XLR): +28 dBu max.
Signal-to-noise ratio: ≥ 90 dB
Input sensitivity: Microphone: -50 dB; Line: -40 dB

Input EQ:
High: 15 dB @ 12 kHz
Mid: 15 dB @ 2.5 kHz
Low: 15 dB @ 80 Hz

Phantom power: +48V
